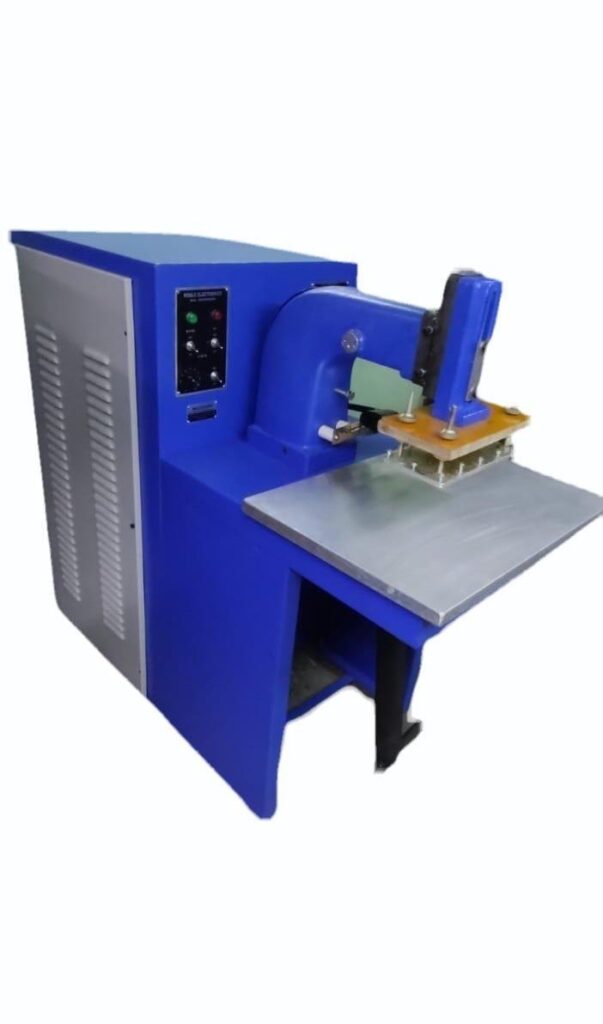

Noble Electronics Introduce Foot Padel Model 2kw High
Frequency PVC Plastics Welding Machine
This machine is suitable for heavy pressure and expanded die
job.
Bigger work plate and work table to accommodate big
dimension job.
Its available in manual foot pedal press capacity of 2K.w
*SPECIFICATION*
Power input: 240 volts, 50Hz,
Single phase ( with earthing)
Power Output: 2000W Approx
Frequency: 27MHz/secs
Oscilllator tube: 833A ×2
Welding area: 60″ running Max
Rectifier: -Bridge solid diods
Timer: 0-10sec auto cutCounter: (0 to 10000)
Size of Working plate: 16″x 24″× 25 mm solid alluminium
Machine Size H – 46″ W – 22″, D – 52″
Weight: 160 kg approxPressure: Manual foot-pedal
