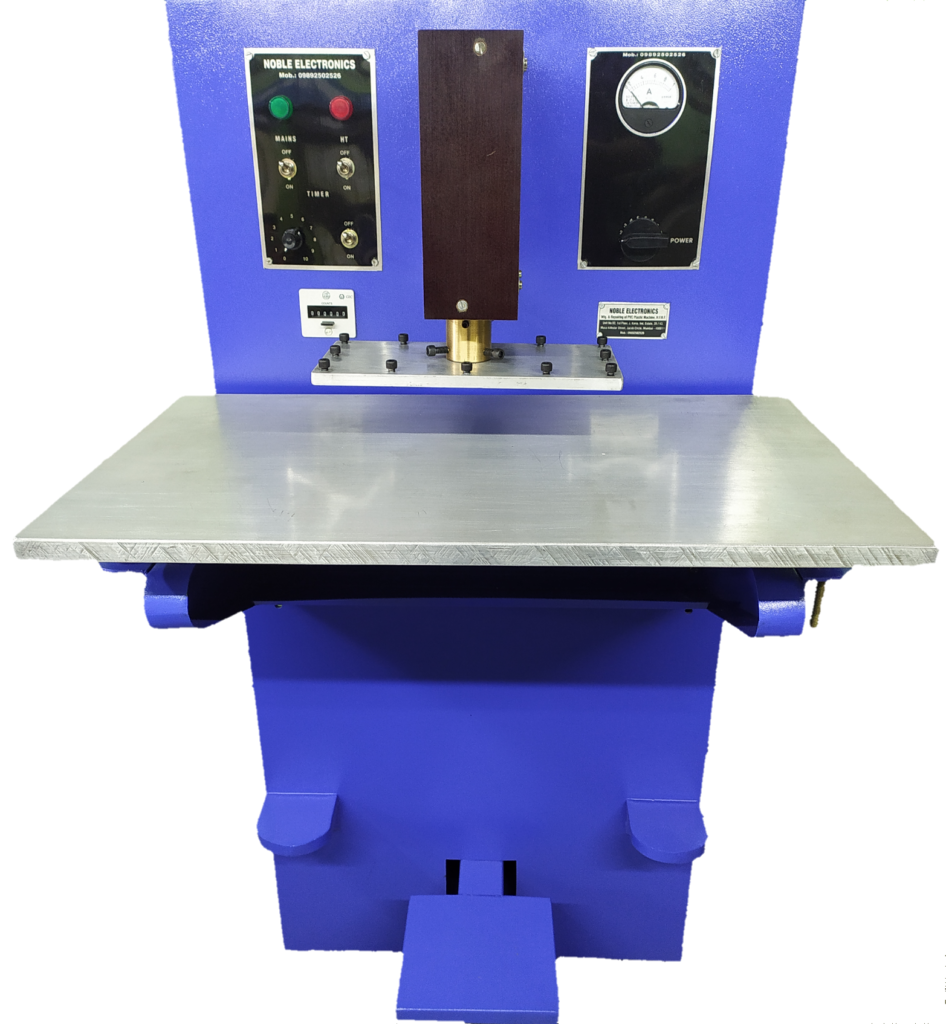

machine
SPECIFICATIONS
Power input 240 volts, 50Hz, Single phase
Power Output 2K.W Approx
Frequency 27MHz/secs

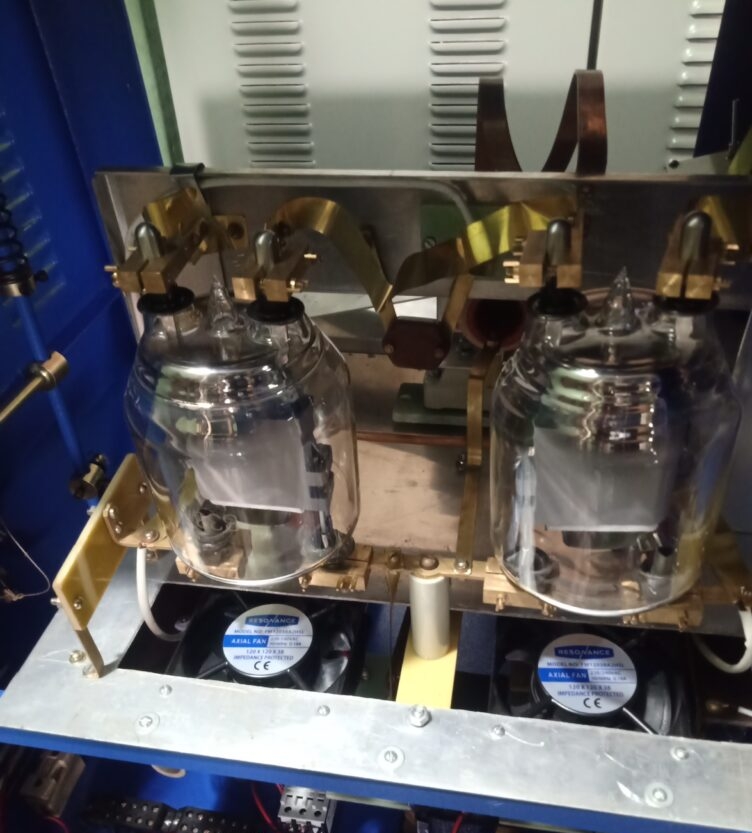

Oscilllator tube 2nos 833A
Welding area 40sq.cms Max
Rectifier Silicon-Bridge
Timer 0-10secs, auto(electronic)
Size of Working plate 16″x24″ inch
Counter Electronics counting
Machine Size 51x21x42inch
Weight 160kg approxPower input 240 volts, 50Hz,
Pressure: Manual foot pedal
STANDARD FEATURES
With better design for more pressure
work, less covering space.
Special design die holder for better
work job.
Controlable heat with build in
electronics timer rated 0 to 10 second.
Solid slide inside front mechanisium
which gives long lasting accuacy
movement for die .
