SPECIFICATIONS
Power input 240 volts, 50Hz, Single phase
Power Output 1500W Approx
Frequency 27MHz/secs
Oscilllator tube 833A
Welding area 25 sq.cms Max

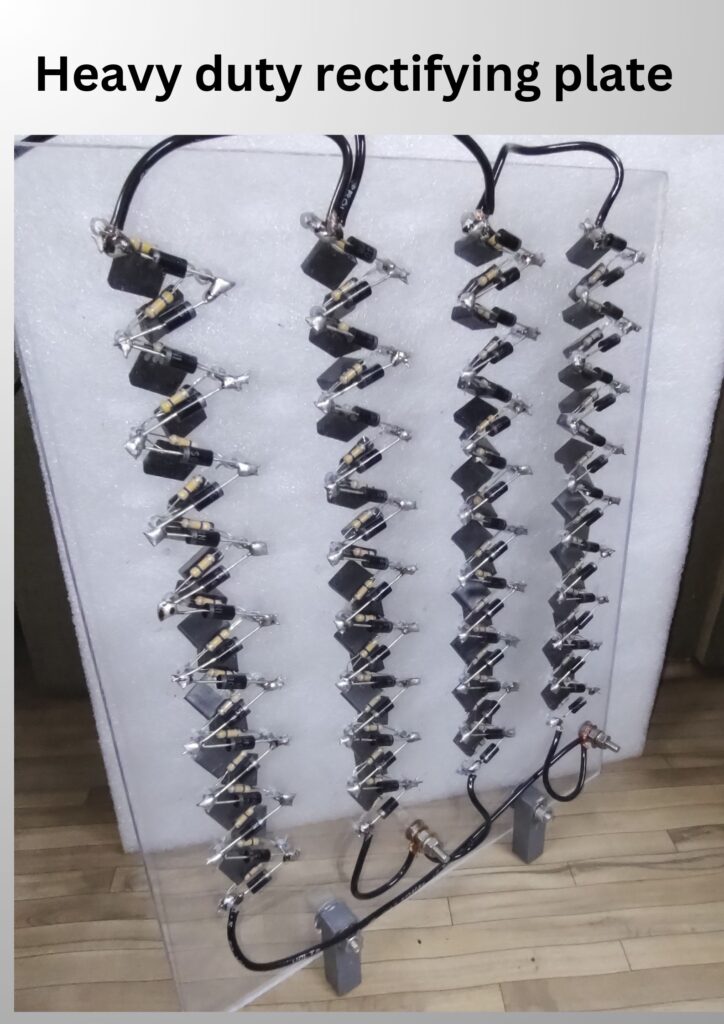

Rectifier Silicon-Bridge
Timer 0-10secs, auto(electronic)
Size of Working plate 16″x22″(40x50cms)
Counter 10,000 counting
Machine Size 130x45x100cms
Weight 150kg approx
Pressure Manual foot-pedal
STANDARD FEATURES
STANDARD FEATURES: SINGLE PHASES MACHINE SEPARATE FUSE GIVEN FOR THE LINE CURRENT WHICH PROTECTS THE COSTLY PARTS OF THE MACHINE AGAINST ANY DAMAGE FROM VARIATIONS IN POWER, DEFECT IN POWER CONNECTION ETC.
THIS FUSE ARE EASILY CONVERTIBLE.
NO WARM UP PERIOD IS REQUIRED. ALL CONTROLS ARE VISIBLE AND EASY TO OPERATE DURING THE OPERATIONS.
A BUILD IN ELECTRONIC TIMER, RATED 0-10SECS GOVERNS THE WORKING CYCLE AUTOMATICALLY FOR THE CONTROL OF QUALITY THROUGHOUT. ENSURE HIGHEST RATE OF PRODUCTION AND HENCE PROFITABILITY.
Rain wears, chemical suits, visitor chart album, photo albums, air inflated toys, Vehicle seat-covers, wallets, watch-belts, belts, bags, cases, covers, pouches, Auto upholstery, vinyl welding, stationery blister packing, pharmaceuticals suits,
making of shelter cinema screen sline and glucosetube etc…
(A large variety of products which our machine are capable of turning out from PVC plastic sheets, PVC films, PVC leather cloth and rexine).
